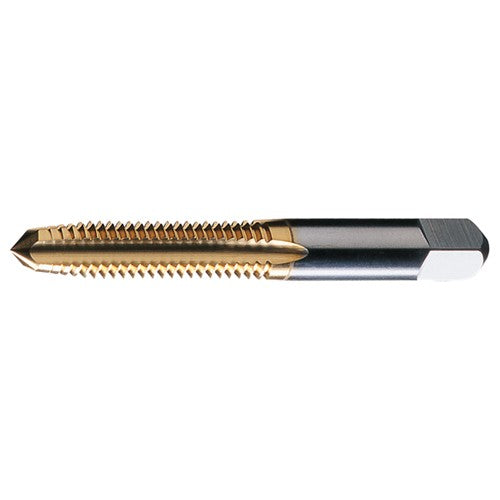

M8x1.25 4 Flute D5 Bottoming HSS Standard Straight Flute Hand Tap- TiN
Item #: VT10328568
Brand: Greenfield Threading
Model #: 328568
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Chamfer | Bottoming |
| Thread Pitch (TP) | 1.25 mm |
| Coating | TiN |
| Overall Length (OAL) | 2.7188″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Style | Bottoming |
| Flute Count (NOF) | 4 |
| Shank Type | Round w/ Drive Square |
| Application | General Purpose |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Length Group | 2D |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D5 | 2B |
| Series/List # | HTGP-TN |
| Tool Type | Hand Tap |
| Thread Size | M8 × 1.25 |
