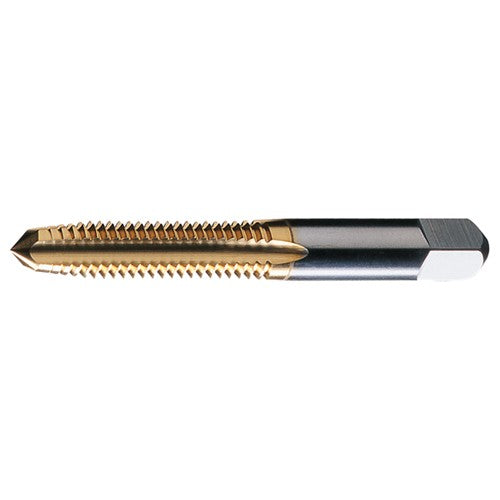

M3x0.5 3 Flute D3 Bottoming HSS Standard Straight Flute Hand Tap- TiN
Item #: VT10328205
Brand: Greenfield Threading
Model #: 328205
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Chamfer | Bottoming |
| Thread Pitch (TP) | 0.5 mm |
| Coating | TiN |
| Overall Length (OAL) | 1-15/16″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 5/8″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Style | Bottoming |
| Flute Count (NOF) | 3 |
| Shank Type | Round w/ Drive Square |
| Application | General Purpose |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Length Group | 2D |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D3 | 2B |
| Series/List # | HTGP-TN |
| Tool Type | Hand Tap |
| Thread Size | M3 × 0.5 |
