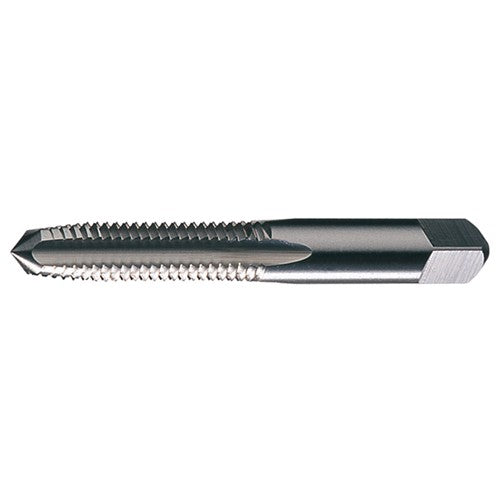

#3-48 UNC 3 Flute H2 Plug HSS Standard Straight Flute Hand Tap- Bright
Item #: VT10300520
Brand: Greenfield Threading
Model #: 300520
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #3 |
| Chamfer | Plug |
| Threads per Inch (TPI) | 48 |
| Coating | Bright |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 1-13/16″ |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 1/2″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Application | General Purpose |
| Length Group | 2D |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS |
| Series/List # | HTGP |
| Thread Tolerance Class (TCTR) | H2 | 2B |
| Thread Size | #3 - 48 |
| Tool Type | Hand Tap |
