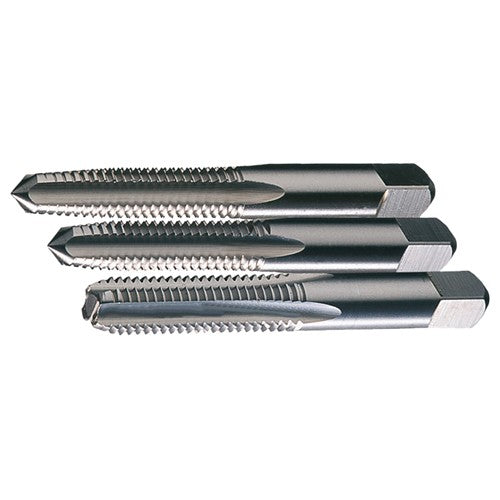

3/4-10 UNC 4 Flute H3 Taper-Plug-Bottoming HSS Standard Straight Flute 3-Piece Hand Tap Set- TiN
Item #: VT10174513
Brand: Greenfield Threading
Model #: 174513
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/4″ |
| Overall Length (OAL) | 4-1/4″ |
| Thread Standard | NC |
| Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Threads per Inch (TPI) | 10 |
| Flute Count (NOF) | 4 |
| Flute Type | Straight |
| Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | H3 |
| Quantity | 3 |
| Style | Taper|Plug|Bottoming |
| Application | General Purpose |
| Tool Type | Tap | Hand Taps |
| Measurement Type | Inch |
| Shank Type | Round w/ Drive Square |
| Series/List # | HTGP-3PC-TN |
| Flute Length | 2″ |
| Thread Cutting Part Length (THL) | 1.22″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Size | 3/4″ - 10 |
| Coating | TiN |
