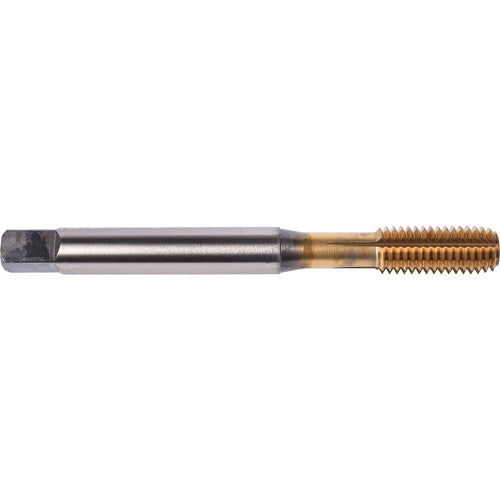

M6 1.00 MM Union Butterfield HSS-PM TiN/Top Applix M M Machine Forming Tap Fluteless DIN/ANSI E-code # 1697APM6X1.0
Item #: UB5946205004
Brand: Union Butterfield
Model #: 6205004
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap|Machine Tap |
| Coating | TiN |
| Thread Diameter Size (TDZ) | M6 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Thread Pitch (TP) | 1 mm |
| Length Group | 3D |
| Overall Length (OAL) | 80 mm |
| Square Size | 0.191″ |
| Thread Cutting Part Length (THL) | 17 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Style | Semi-Bottoming |
| Thread Tolerance Class (TCTR) | 6H |
| Cutting Edge Material | HSSCoPM |
| Tap Standard | DIN|ANSI |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric |
| Thread Size | M6 × 1 |
| Applicable Material | Aluminum|Copper|Hardened Steel|Steel|Titanium |
