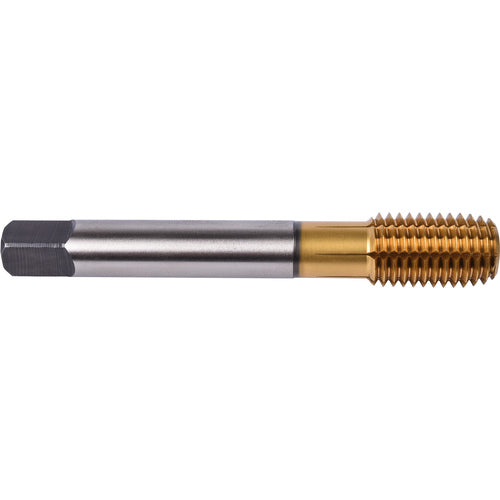

3/8″- 24 Union Butterfield HSS-PM TiN/Top Applix UNF UNF Machine Forming Tap Fluteless DIN/ANSI E-code # 1691AP3/8X24
Item #: UB5946204983
Brand: Union Butterfield
Model #: 6204983
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap|Machine Tap |
| Coolant Supply Property (CSP) | Coolant Thru |
| Thread Diameter Size (TDZ) | 3/8″ |
| Threads per Inch (TPI) | 24 |
| Overall Length (OAL) | 3.937″ |
| Length Group | 3D |
| Thread Cutting Part Length (THL) | 0.709″ |
| Square Size | 0.286″ |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 2B |
| Style | Semi-Bottoming |
| Tap Standard | DIN|ANSI |
| Cutting Edge Material | HSSCoPM |
| Thread Standard | NF |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Aluminum|Copper|Hardened Steel|Steel|Titanium |
| Thread Size | 3/8″ - 24 |
| Coating | TiN |
