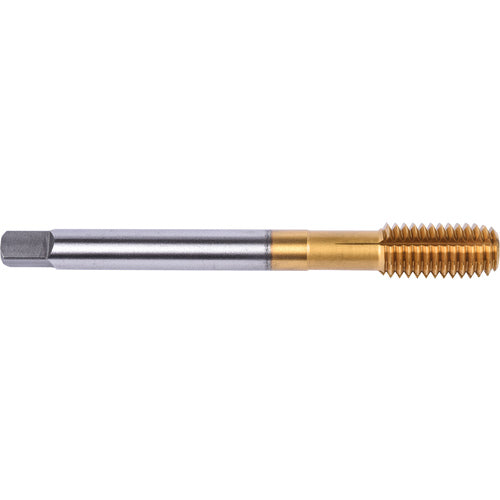

No.10 24 Union Butterfield HSS-PM TiN/Top Applix UNC UNC Machine Forming Tap Fluteless DIN/ANSI E-code # 1681AP10X24
Item #: UB5946204937
Brand: Union Butterfield
Model #: 6204937
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap|Machine Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | #10 |
| Threads per Inch (TPI) | 24 |
| Overall Length (OAL) | 2.756″ |
| Length Group | 3D |
| Thread Cutting Part Length (THL) | 0.591″ |
| Square Size | 0.152″ |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Measurement Type | Wire Gage |
| Thread Tolerance Class (TCTR) | 2B |
| Style | Semi-Bottoming |
| Tap Standard | DIN|ANSI |
| Cutting Edge Material | HSSCoPM |
| Thread Standard | NC |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Aluminum|Copper|Hardened Steel|Steel|Titanium |
| Thread Size | #10 - 24 |
| Coating | TiN |
