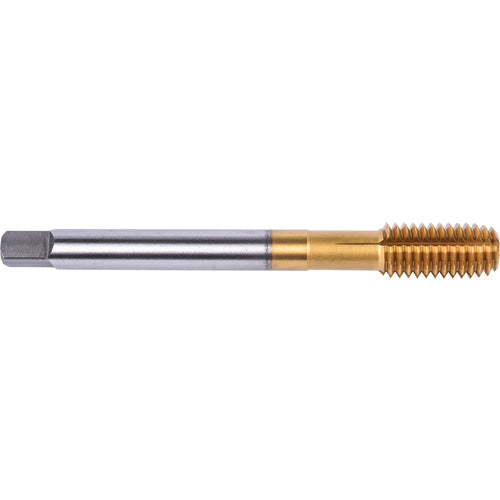

1/2″- 13 Union Butterfield HSS-PM TiN/Top Applix UNC UNC Machine Forming Tap Fluteless DIN/ANSI E-code # 1681AP1/2X13
Item #: UB5946204933
Brand: Union Butterfield
Model #: 6204933
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap|Machine Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/2″ |
| Threads per Inch (TPI) | 13 |
| Overall Length (OAL) | 4.331″ |
| Length Group | 3D |
| Thread Cutting Part Length (THL) | 0.984″ |
| Square Size | 0.275″ |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 2B |
| Style | Semi-Bottoming |
| Tap Standard | DIN|ANSI |
| Cutting Edge Material | HSSCoPM |
| Thread Standard | NC |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Aluminum|Copper|Hardened Steel|Steel|Titanium |
| Thread Size | 1/2″ - 13 |
| Coating | TiN |
