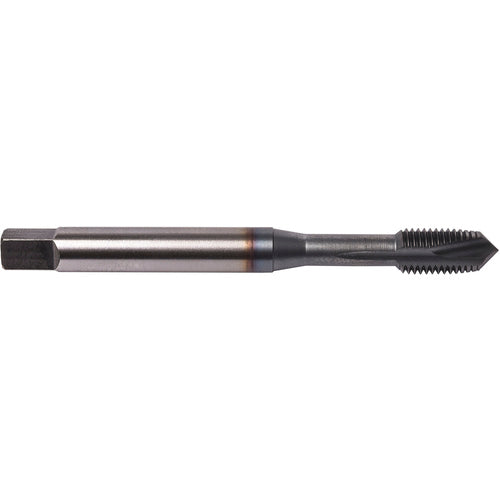

M8 1.25 MM 3 Flute Union Butterfield HSS-PM TiCN Applix M Machine Tap DIN/ANSI E-code # 1673APM8X1.25
Item #: UB5946204887
Brand: Union Butterfield
Model #: 6204887
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Tool Type | Machine Tap |
| Thread Size | M8 × 1.25 |
| Applicable Material | Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | M8 |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Pitch (TP) | 1.25 mm |
| Thread Cutting Part Length (THL) | 20 mm |
| Thread Tolerance Class (TCTR) | 6H |
| End Shape | Spiral Point |
| Overall Length (OAL) | 90 mm |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Length Group | 3xD |
| Cutting Edge Material | HSSCoPM |
| Square Size | 0.238″ |
| Standard | DIN|ANSI |
| Measurement Type | Metric |
