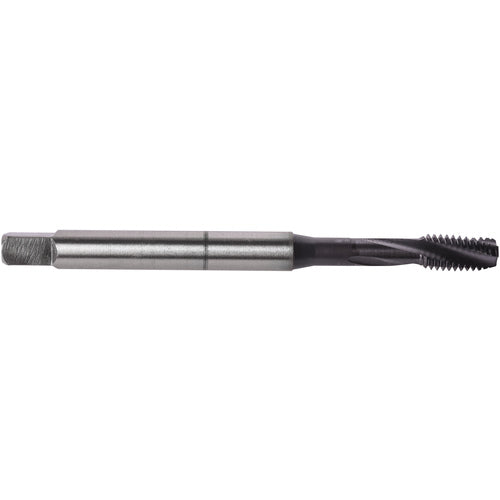

M12 1.75 MM 3 Flute Union Butterfield HSS-PM TiAlN/Top Applix M Machine Tap Spiral Flute 17 DIN/ANSI E-code # 1660APM12X1.75
Item #: UB5946204840
Brand: Union Butterfield
Model #: 6204840
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M12 |
| Standard | DIN/ANSI |
| Thread Pitch (TP) | 1.75 mm |
| Tool Type | Machine Tap |
| Thread Standard | Metric |
| Coating | TiAlN |
| Overall Length (OAL) | 110 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 16 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Cast Iron | Hard Materials |
| Length Group | 1.5D |
| Cutting Edge Material | HSSCoPM |
| Square Size | 0.275″ |
| Thread Tolerance Class (TCTR) | 6H |
| Measurement Type | Metric |
