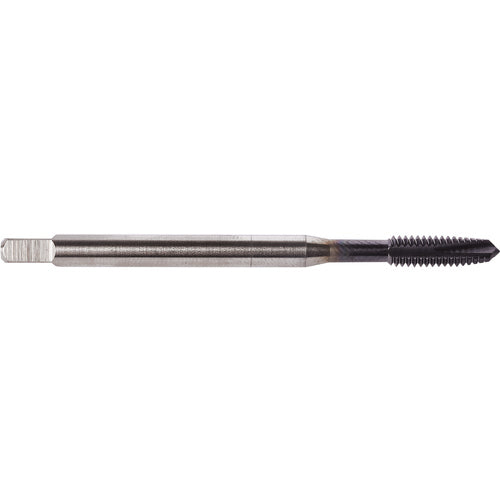

1/4″- 28 3 Flute Union Butterfield HSS-PM TiAlN/Top Applix UNF Machine Tap DIN/ANSI E-code # 1629AP1/4X28
Item #: UB5946204757
Brand: Union Butterfield
Model #: 6204757
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Tool Type | Machine Tap |
| Thread Size | 1/4″ - 28 |
| Applicable Material | Cast Iron | Hard Materials |
| Thread Diameter Size (TDZ) | 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Threads per Inch (TPI) | 28 |
| Thread Cutting Part Length (THL) | 0.669″ |
| Thread Tolerance Class (TCTR) | 2B |
| End Shape | Spiral Point |
| Overall Length (OAL) | 3.15″ |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Length Group | 2.5xD |
| Cutting Edge Material | HSSCoPM |
| Square Size | 0.191″ |
| Standard | DIN|ANSI |
| Measurement Type | Fractional |
