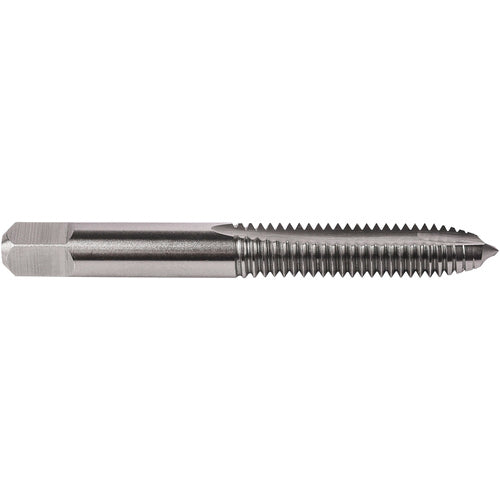

5/16″- 24 2 Flute Plug Union Butterfield HSS TiN UNF Relieved Style Spiral Point ANSI E-code # TN15855/16-24H32FL
Item #: UB171060313
Brand: Union Butterfield
Model #: 6007453
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Size | 5/16″ - 24 |
| Connection Diameter Machine Side (DCONMS) | 0.238″ |
| Thread Diameter Size (TDZ) | 5/16″ |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Threads per Inch (TPI) | 24 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 3B|H3 |
| Style | Plug |
| Overall Length (OAL) | 2-23/32″ |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Length Group | 2.5xD |
| Cutting Edge Material | HSS |
| Square Size | 3/8″ |
| Standard | ANSI |
| Measurement Type | Fractional |
