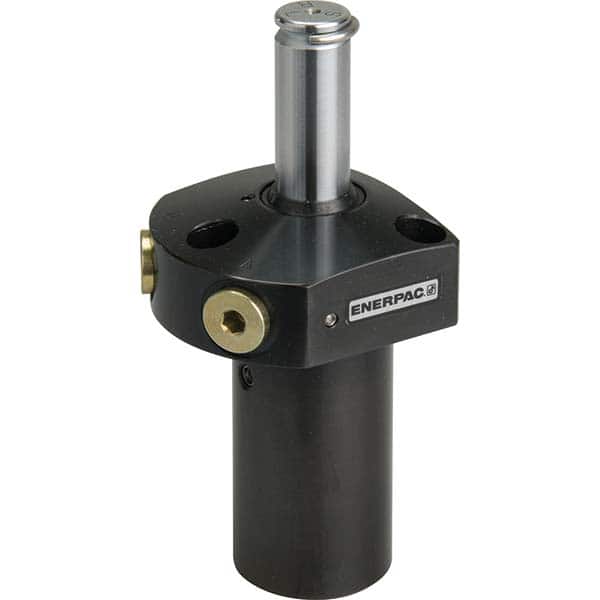

Enerpac - Swing Clamps Operation Type: Hydraulic Action Type: Double-Acting
Item #: 10339117
Brand: Enerpac
Model #: SURD51
Features and Benefits
Hydraulic swing clamps are used for high pressure operations. Hydraulic fluid is used for opening or closing the clamp arm on the workpiece.
Swing clamps use either hydraulic fluids or pneumatic air-actuated cylinders to apply pressure to the workpiece. Double-Acting ensures positive action when the pressure is reapplied to lift the clamp, rotate and return to the unclamped position.
Product Specifications
Swing Clamps; Operation Type: Hydraulic ; Action Type: Double-Acting ; Swing Direction: Right Hand ; Clamping Force (Lb.): 1250.00 ; Operating Volume (Cu. In.): 0.28 ; Total Stroke Distance (Decimal Inch): 0.8900
| Operation Type | Hydraulic |
| Action Type | Double-Acting |
| Swing Direction | Right Hand |
| Clamping Force (Lb.) | 1250.00 |
| Operating Volume (Cu. In.) | 0.28 |
| Total Stroke Distance (Decimal Inch) | 0.8900 |
| Maximum Operating Pressure (psi) | 5000.00 |
| Mounting Type | Flange |
| Effective Clamping Area (Sq. In.) | 0.28 |
| Effective Unclamping Area (Sq. In.) | 0.59 |
| Maximum Operating Pressure (bar) | 350.00 |
| Minimum Operating Pressure (psi) | 500.00 |
| Clamp Arm Compatibility | CAS-51A Arm; CAL-52 Arm |
| Includes | Swing Clamp, 2 Arm Retaining Clips, Mounting Bolts |
