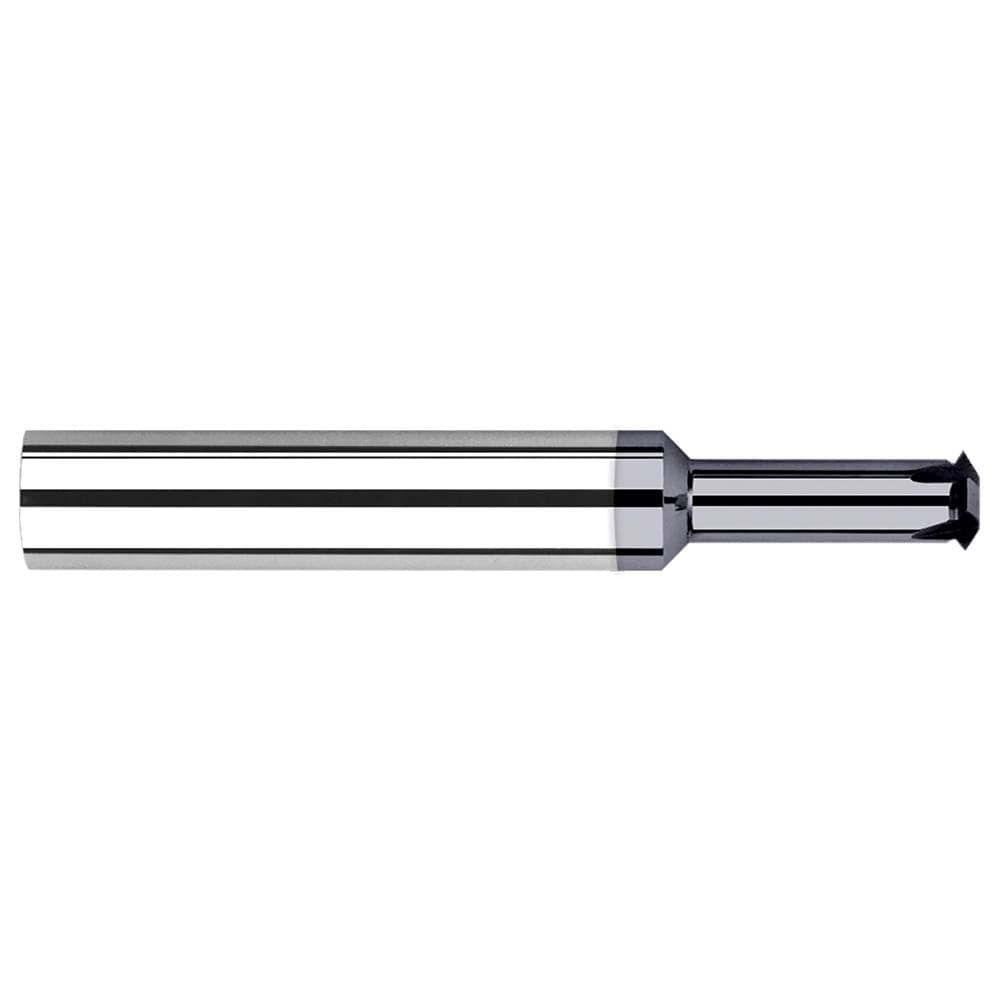

Brand: Harvey Tool / Part #: 54290-C3
Item #: 36915205
Brand: Harvey Tool
Model #: 54290-C3
Product Specifications
| Maximum Threads Per Inch | 72 |
| Minimum Pitch (Decimal Inch) | 0.1250 |
| Minimum Threads Per Inch | 8 |
| Maximum Pitch (Decimal Inch) | 0.0139 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Thread Size | 1 in-8 - #1-72 |
| Thread Depth (Decimal Inch) | 2.2500 |
| Shank Diameter (Inch) | 5/8 |
| Cutting Diameter (Inch) | 5/8 |
| Minimum Nominal Diameter (Inch) | #1 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Neck Diameter (Decimal Inch) | 0.4200 |
| Shank Length (Decimal Inch) | 1.7500 |
| Series | Thread Milling Cutters - Single Form - UN Threads |
| Thread Standard | UN 60 Degree |
| Number Of Flutes | 6 |
| Coating/Finish | AlTiN |
