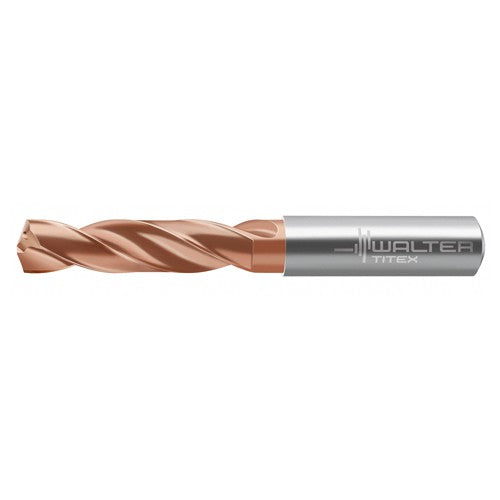

12.5 mm Dia. × 14 mm Shank × 60 mm Flute Length × 107 mm OAL, 3xD, 140°, 2xD Flute, Coolant Thru, DIN 6537 K, Round Solid Carbide Drill
Item #: TT105954803
Brand: Walter-Titex
Model #: 5954803
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 12.5 mm |
| Shank Standard | DIN 6537 K |
| Decimal Equivalent | 0.4921″ |
| Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.5 mm |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Tool Type | Solid Carbide |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Series/List # | A3299XPL |
| Point Angle (SIG) | 140 Degrees |
| Usable Length (LU) | 43 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Length Chip Flute (LCF) | 60 mm |
| Shank Type | Round |
| Overall Length (OAL) | 107 mm |
