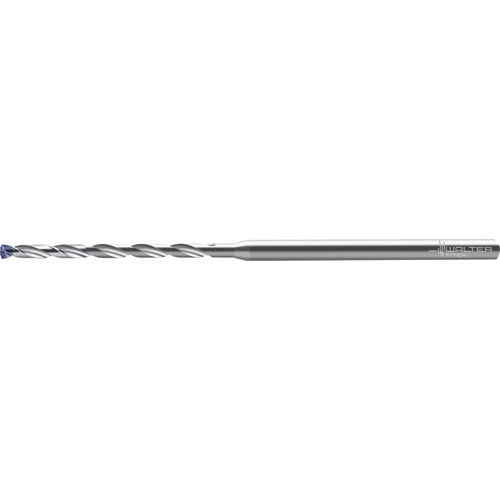

2.5 mm Dia. × 3 mm Shank × 39 mm Flute Length × 77 mm OAL, 140°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill A6589AMP-2.5
Item #: TT105932222
Brand: Walter-Titex
Model #: 5932222
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 2.5 mm |
| Shank Standard | DIN 6535 HA |
| Decimal Equivalent | 0.0984″ |
| Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.5 mm |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Tool Type | Solid Carbide |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Series/List # | A6589AMP |
| Point Angle (SIG) | 140 Degrees |
| Usable Length (LU) | 35 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Length Chip Flute (LCF) | 39 mm |
| Shank Type | Round |
| Overall Length (OAL) | 77 mm |
