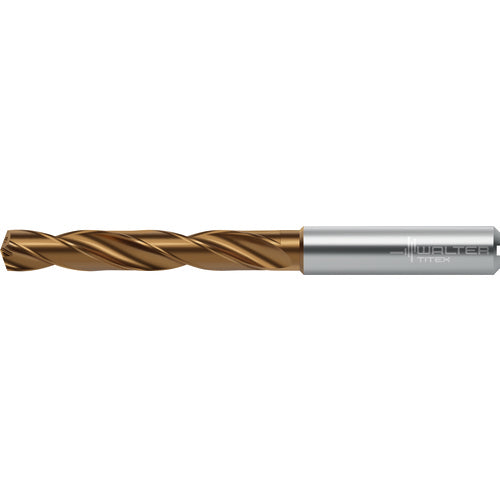

DC160-05-07.938A1-WJ30ET
Item #: TT097377528
Brand: Walter-Titex
Model #: 7377528
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ |
| Functional Length (LF) | 2.087″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ |
| Shank Type | Cylindrical |
| Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide |
| Length Group | 5xD |
| Flute Type | Spiral |
| Coating | TiSiAlCrN / TiAlN |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Overall Length (OAL) | 1.417″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
