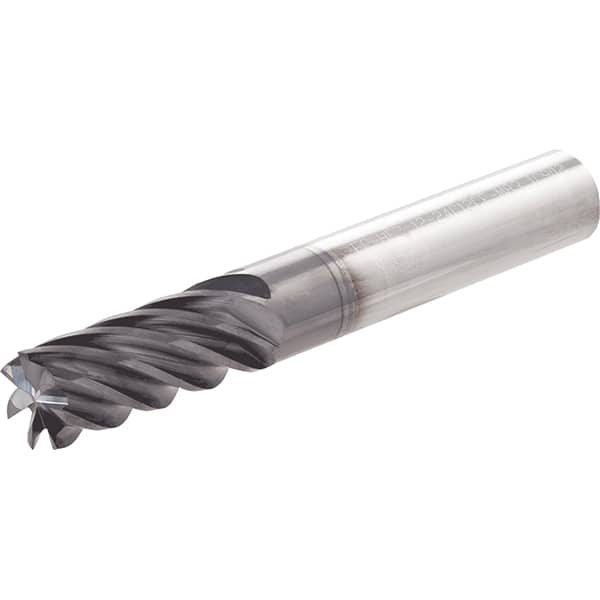

Iscar - Roughing & Finishing End Mills Mill Diameter (Inch): 0.625 Mill Diameter (Decimal Inch): 0.6250
Item #: 15109978
Brand: Iscar
Model #: 3338855
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Product Specifications
Roughing & Finishing End Mills; Mill Diameter (Inch): 0.625 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Chamfer ; Chamfer Length (mm): 0.30 ; Chamfer Length (Decimal Inch): 0.0120 ; Number of Flutes: 7
| Mill Diameter (Inch) | 0.625 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Corner Chamfer |
| Chamfer Length (mm) | 0.30 |
| Chamfer Length (Decimal Inch) | 0.0120 |
| Number of Flutes | 7 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (Inch) | 1.875 |
| Length of Cut (Decimal Inch) | 1.8750 |
| Shank Diameter (Inch) | 0.625 |
| Overall Length (Inch) | 5 |
| Centercutting | Center Cutting |
| Extended Reach | NonExtendedReach |
| Chipbreaker | No |
| Shank Type | Safe-Lock |
| Helix Angle | 37 |
| Single or Double End | Single |
| Length Type | Regular |
