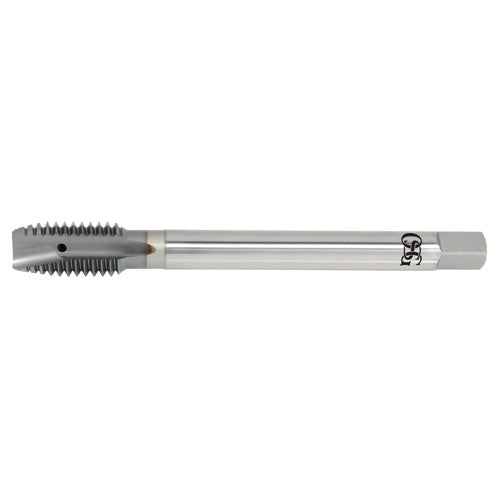

M22X2.0 D7 4FL SP PT TAP
Item #: TP531655002708
Brand: OSG USA, Inc.
Model #: 1655002708
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | VC10 |
| Thread Size | M22 × 2 |
| Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | M22 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 17.7 mm |
| Thread Tolerance Class (TCTR) | D7 |
| Thread Cutting Part Length (THL) | 30 mm |
| Usable Length (LU) | 44 mm |
| End Shape | Spiral Point |
| Overall Length (OAL) | 140 mm |
| Cutting Direction (HAND) | Right Hand |
| Chamfer | 2P-3P |
| Measurement Type | Metric |
| Coating | V Coating |
| Series/List # | 16550 |
| Flute Count (NOF) | 4 |
