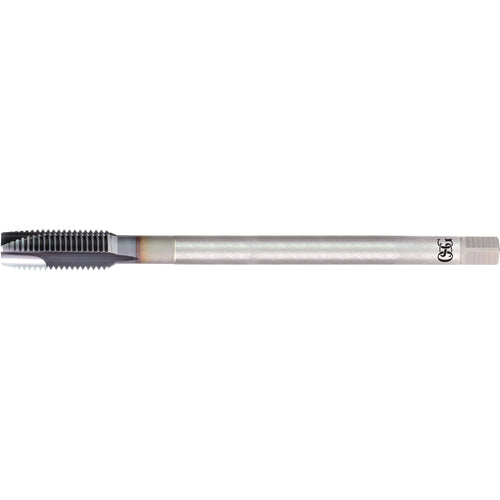

4-48 UNF H2 2S/P 4P ATAP
Item #: TP531653506108
Brand: OSG USA, Inc.
Model #: 1653506108
| Product Specifications | |
|---|---|
| Thread Standard | UNF |
| Flute Count (NOF) | 2 |
| Thread Size | #4 - 48 |
| Cutting Edge Material | VC10 |
| Thread Diameter Size (TDZ) | #4 |
| Tool Type | Spiral Point Tap |
| Threads per Inch (TPI) | 48 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Tolerance Class (TCTR) | H2 |
| Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Usable Length (LU) | 0.751″ |
| Thread Cutting Part Length (THL) | 0.342″ |
| Overall Length (OAL) | 3.14″ |
| End Shape | Spiral Point |
| Chamfer | 3.5P-4.5P |
| Measurement Type | Wire Gauge |
| Coating | V Coating |
| Series/List # | 16535 |
