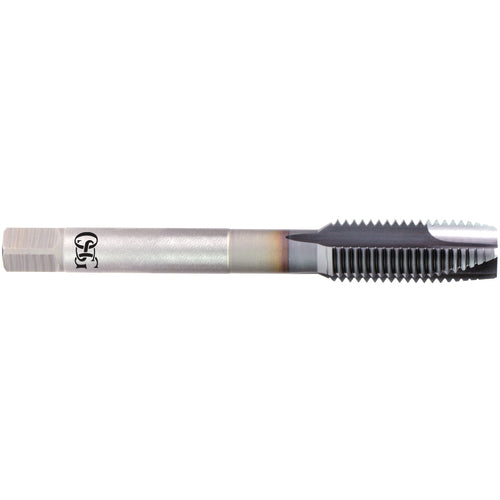

M5x0.5 3FL D3 VC-10 Spiral Point Tap - V Coating
Item #: TP531651000408
Brand: OSG USA, Inc.
Model #: 1651000408
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | VC10 |
| Thread Size | M5 × 0.5 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M5 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 4.92 mm |
| Thread Tolerance Class (TCTR) | D3 |
| Thread Cutting Part Length (THL) | 9 mm |
| Usable Length (LU) | 25 mm |
| End Shape | Spiral Point |
| Overall Length (OAL) | 70 mm |
| Style | Plug |
| Chamfer | 2P-3P |
| Measurement Type | Metric |
| Coating | V Coating |
| Series/List # | 16510 |
| Flute Count (NOF) | 3 |
