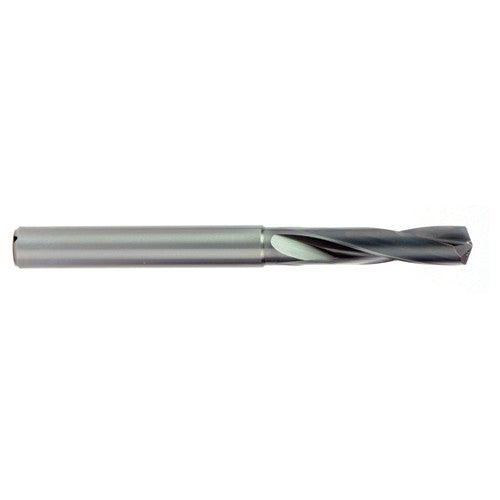

11 mm Dia. × 11.5 mm Shank × 55 mm Flute Length × 113 mm OAL, Stub, SiC, 2xD Flute, Solid Carbide Drill
Item #: TP51595043311
Brand: OSG USA, Inc.
Model #: 595043311
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 11 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11 mm |
| Tool Type | Solid Carbide |
| Length Group | Stub |
| Measurement Type | Metric |
| Coating | SiC |
| Series/List # | 5950NI |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 55 mm |
| Connection Diameter Machine Side (DCONMS) | 11.5 mm |
| Length Chip Flute (LCF) | 55 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 113 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 55 mm |
| Cutting Direction (HAND) | Right Hand |
| Shape | Solid Carbide |
