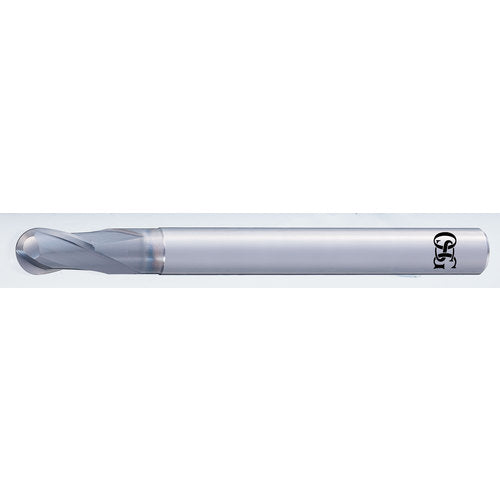

1 mm Dia. × 4 mm Shank × 2 mm DOC × 50 mm OAL, Carbide DURO, 2 Flute, Shrink Fit, Ballnose End Mill
Item #: TP4685300023
Brand: OSG USA, Inc.
Model #: 85300023
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1 mm |
| Corner Radius (RE) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Neck Diameter (DN) | 0.95 mm |
| Depth of Cut Maximum (APMX) | 2 mm |
| Tool Type | Center Cut |
| Overall Length (OAL) | 50 mm |
| End Shape | Ball Nose |
| Cutting Edge Material | Carbide |
| Shank Standard | h6 |
| Coating | DURO |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | 8530 |
| Shank Type | Shrink Fit |
