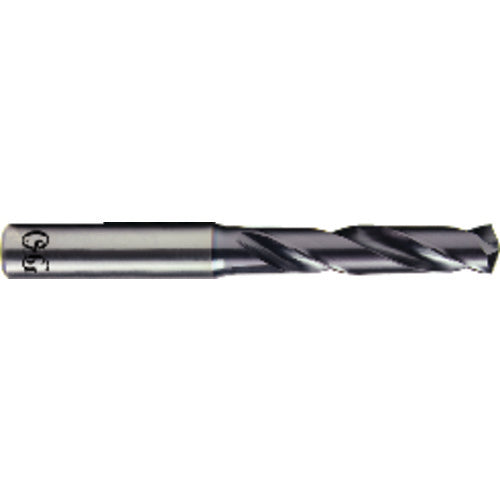

11.7 mm Dia. × 5.2 mm Shank Dia. × 102 mm OAL × 55 mm LCF ; 140 Degrees ; 3xD ; EgiAs ; Series HP253
Item #: TP45HP2534606
Brand: OSG USA, Inc.
Model #: HP253-4606
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 11.7 mm |
| Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.7 mm |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Tool Type | Solid Carbide Drill |
| Coating | EgiAs |
| Measurement Type | Metric |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Hard Materials |
| Series/List # | HP253 |
| Connection Diameter Machine Side (DCONMS) | 5.2 mm |
| Usable Length (LU) | 55 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 55 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 102 mm |
| Functional Length (LF) | 55 mm |
| Flute Count (NOF) | 2 |
| Shank Type | H6 |
| Cutting Direction (HAND) | Right Hand |
