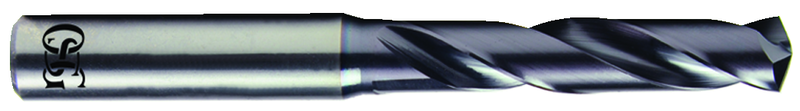

9/64 Carbide 3xD HY-PRO® CARB Drill

Item #: TP45HP2431406
Manufacturer: OSG USA, Inc.
Mfg #: HP243-1406

Technical Specifications:
•Angle: 140 ° •Brand Name: OSG USA, Inc. •Coating: TiAlN •Decimal Equivalent: .1406 •Drill Diameter: 9/64 •Flute Length x Diameter Ratio: 3xD •Helix Angle: 30 Degree •List No.: HP243 •Material: Carbide •Max Drilling Depth: 20mm •Model Number: HP243-1406 •Number of Flutes: 2 •Shank Size: 6mm •Trade Name: HY-PRO ® CARB •Type: High Performance Drill

Description:
•OSG List No. HP243

Shipping Info:
•Actual Weight - .0450 •Dimensions - Height: .450 Length: 2.45 Width: .500
