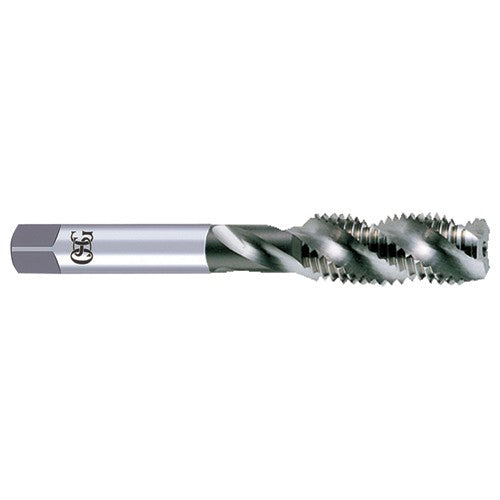

4-40 Dia. - STI - H2-2 FL - Spiral Flute Bottoming Tap
Item #: TP428003600
Brand: OSG USA, Inc.
Model #: 8003600
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Style | Bottoming |
| Chamfer | 1.5P-2P |
| Thread Diameter Size (TDZ) | #4 |
| Coating | Bright |
| Thread Tolerance Class (TCTR) | H2 |
| Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | STI |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.251″ |
| Usable Length (LU) | 0.688″ |
| Threads per Inch (TPI) | 40 |
| Measurement Type | Wire Gage |
| Overall Length (OAL) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Cutting Edge Material | HSS |
| Series/List # | S108 |
| Flute Count (NOF) | 2 |
| Thread Size | #4 - 40 |
