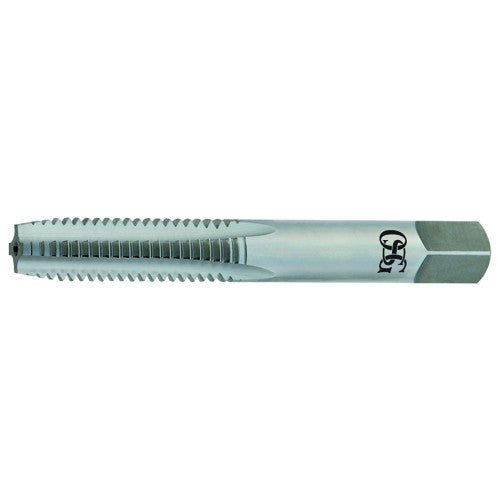

M6X1 D3 3FL STI SEMI-BOTT
Item #: TP4212800600
Brand: OSG USA, Inc.
Model #: 12800600
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Style | Semi-Bottoming |
| Chamfer | 2.5P-3P |
| Thread Diameter Size (TDZ) | M6 |
| Thread Pitch (TP) | 1 mm |
| Thread Tolerance Class (TCTR) | D3 |
| Usable Length (LU) | 29 mm |
| Thread Standard | Metric |
| Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 14 mm |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm |
| Overall Length (OAL) | 69 mm |
| Series/List # | 128 |
| Cutting Edge Material | HSS |
| Thread Size | M6 × 1 |
| Flute Count (NOF) | 3 |
