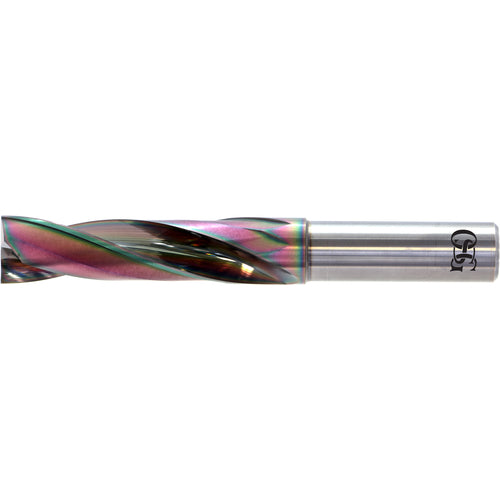

15.8 mm Dia. × 12 mm Shank × 68 mm Flute Length × 115 mm OAL, 2xD, EgiAs, 2 Flute, No, Solid Carbide Drill
Item #: TP353331580
Brand: OSG USA, Inc.
Model #: 3331580
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 15.8 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15.8 mm |
| Tool Type | Stub Drill |
| Length Group | 2xD |
| Measurement Type | Metric |
| Coating | EgiAs |
| Series/List # | 5700 |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 68 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Length Chip Flute (LCF) | 68 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 115 mm |
| Point Angle (SIG) | 0 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 68 mm |
| Cutting Direction (HAND) | Right Hand |
