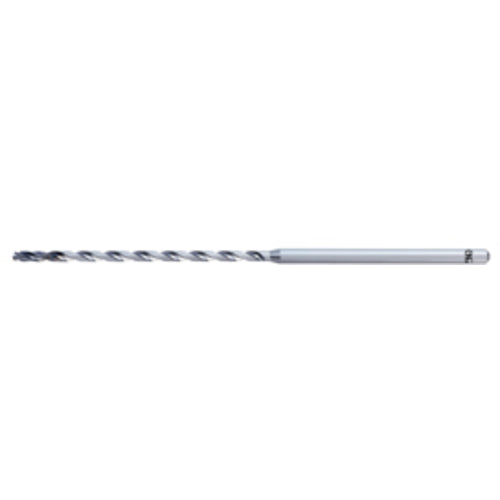

1.1 mm Dia. × 3 mm Shank × 26.4 mm Flute Length × 75 mm OAL, 20xD, IchAda, 2 Flute, No, Solid Carbide Drill
Item #: TP348732047
Brand: OSG USA, Inc.
Model #: 8732047
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1.1 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.1 mm |
| Tool Type | Taper Drill |
| Length Group | 20xD |
| Measurement Type | Metric |
| Coating | IchAda |
| Series/List # | 6504 |
| Applicable Material | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Usable Length (LU) | 26.4 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Length Chip Flute (LCF) | 26.4 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 75 mm |
| Point Angle (SIG) | 135 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 26.4 mm |
| Cutting Direction (HAND) | Right Hand |
