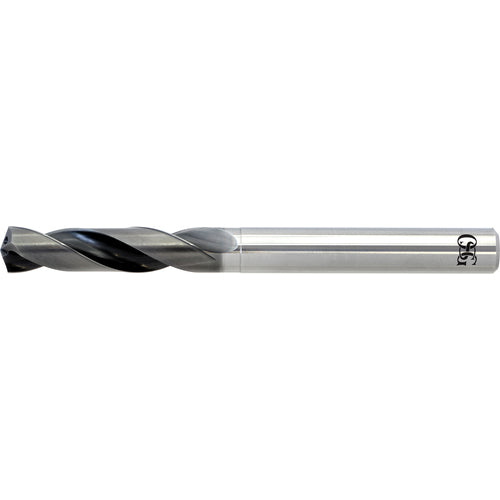

19 mm Dia. × 20 mm Shank × 95 mm Flute Length × 160 mm OAL, 3xD, WXL, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: TP348681900
Brand: OSG USA, Inc.
Model #: 8681900
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 19 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 19 mm |
| Tool Type | Stub Drill |
| Length Group | 3xD |
| Measurement Type | Metric |
| Coating | WXL |
| Series/List # | 5200 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials | Hard Materials |
| Usable Length (LU) | 95 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Length Chip Flute (LCF) | 95 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 160 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 95 mm |
| Cutting Direction (HAND) | Right Hand |
