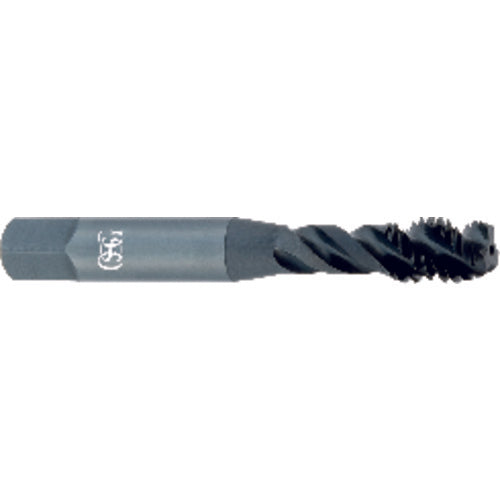

M8 1.25 Dia. - D5-3 FL - HSSE - TiCN - Modified Bottoming - Spiral Flute Tap
Item #: TP282991408
Brand: OSG USA, Inc.
Model #: 2991408
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Cutting Edge Material | HSSCo |
| Thread Pitch (TP) | 1.25 mm |
| Thread Tolerance Class (TCTR) | D5 |
| Thread Standard | Metric |
| Tool Type | High Performance Tap |
| Overall Length (OAL) | 2-23/32″ |
| Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Coating | TiCN |
| Usable Length (LU) | 29 mm |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm |
| Style | Modified Bottoming |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
