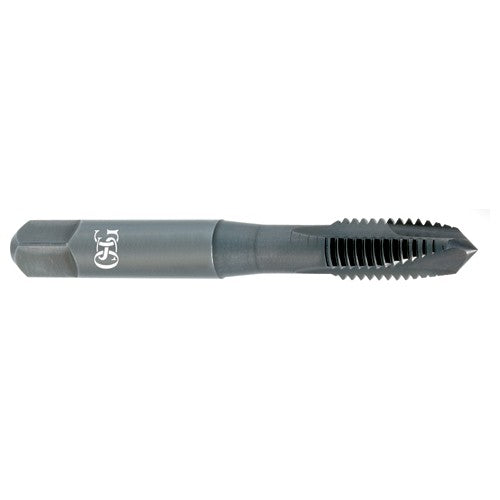

M3.5x0.6 3FL D4 HSSE Spiral Point Tap - Steam Oxide
Item #: TP282890501
Brand: OSG USA, Inc.
Model #: 2890501
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | HSSCo |
| Thread Size | M3.5 × 0.6 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M3.5 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 0.6 mm |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Thread Tolerance Class (TCTR) | D4 |
| Thread Cutting Part Length (THL) | 11/16″ |
| Usable Length (LU) | 18 mm |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Metric |
| Coating | Black Oxide |
| Series/List # | 289 |
| Flute Count (NOF) | 3 |
