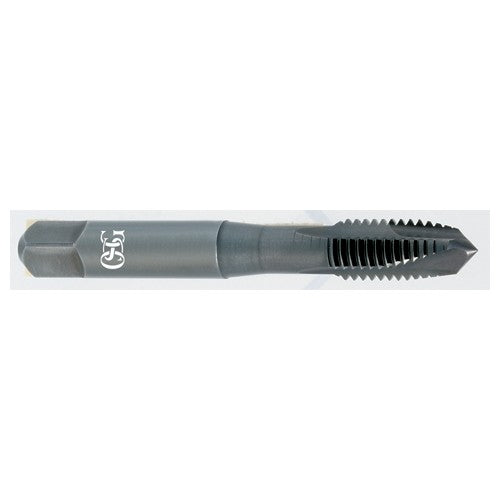

3/8-24 Dia-H5-3 FL-HSS-Steam Oxide-Plug Spiral Point Tap
Item #: TP282841801
Brand: OSG USA, Inc.
Model #: 2841801
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Cutting Edge Material | HSS |
| Thread Size | 3/8″ - 24 |
| Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | 3/8″ |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 24 |
| Connection Diameter Machine Side (DCONMS) | 0.38″ |
| Thread Tolerance Class (TCTR) | H5 |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| Usable Length (LU) | 1.24″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-15/16″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Inch |
| Coating | Black Oxide |
| Series/List # | 280 |
| Flute Count (NOF) | 3 |
