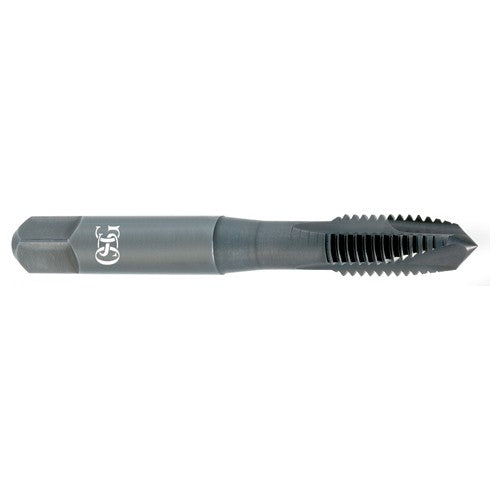

1/4-28 Dia. - H7-3 FL - HSSE - Steam Oxide - Plug - Spiral Point Tap
Item #: TP282840601
Brand: OSG USA, Inc.
Model #: 2840601
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Cutting Edge Material | HSSCo |
| Thread Size | 1/4″ - 28 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | 1/4″ |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 28 |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Thread Tolerance Class (TCTR) | H7 |
| Thread Cutting Part Length (THL) | 1″ |
| Usable Length (LU) | 0.996″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-1/2″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Inch |
| Coating | Black Oxide |
| Series/List # | 280 |
| Flute Count (NOF) | 3 |
