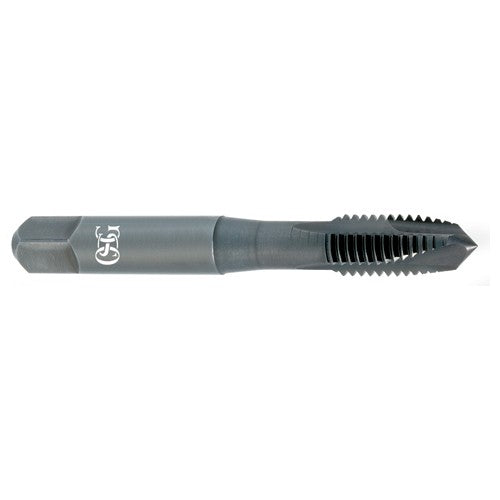

10-32 Dia. - H6-3 FL - HSSE - Steam Oxide - Plug - Spiral Point Tap
Item #: TP282818901
Brand: OSG USA, Inc.
Model #: 2818901
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Cutting Edge Material | HSSCo |
| Thread Size | #10 - 32 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #10 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | H6 |
| Thread Cutting Part Length (THL) | 7/8″ |
| Usable Length (LU) | 0.866″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-3/8″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Wire Gauge |
| Coating | Black Oxide |
| Series/List # | 280 |
| Flute Count (NOF) | 3 |
