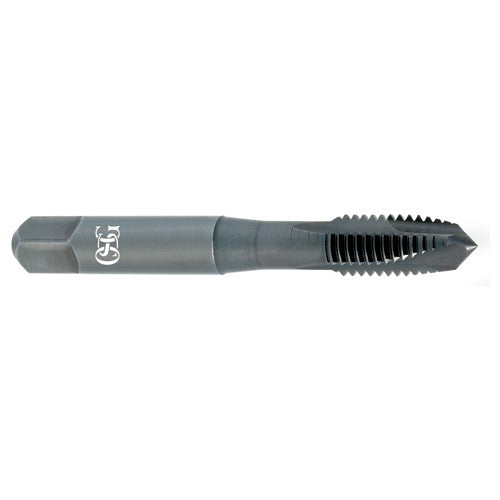

12-28 Dia. - H3-3 FL - HSSE - TiCN - Plug - Spiral Point Tap
Item #: TP282809208
Brand: OSG USA, Inc.
Model #: 2809208
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Cutting Edge Material | HSSCo |
| Thread Size | #12 - 28 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #12 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 28 |
| Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Cutting Part Length (THL) | 15/16″ |
| Usable Length (LU) | 0.933″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-3/8″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Wire Gauge |
| Coating | TiCN |
| Series/List # | 280 |
| Flute Count (NOF) | 3 |
