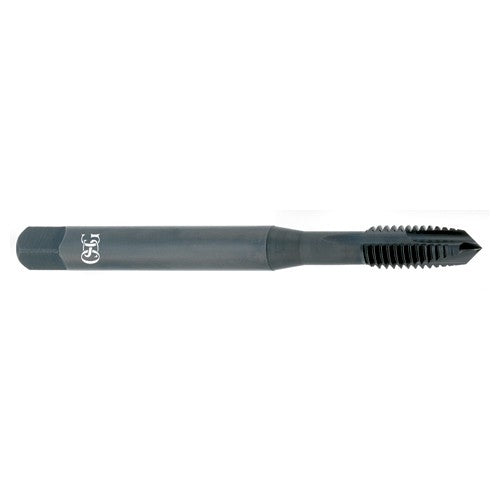

5/16-24 Dia.-2B-3 FL - HSSE - Steam Oxide - Plug - Spiral Point Tap
Item #: TP282531201
Brand: OSG USA, Inc.
Model #: 2531201
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Cutting Edge Material | HSSCo |
| Thread Size | 5/16″ - 24 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | 5/16″ |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 24 |
| Connection Diameter Machine Side (DCONMS) | 0.317″ |
| Thread Tolerance Class (TCTR) | 2B |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Usable Length (LU) | 1.377″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 90 mm |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Inch |
| Coating | Black Oxide |
| Series/List # | 250 |
| Flute Count (NOF) | 3 |
