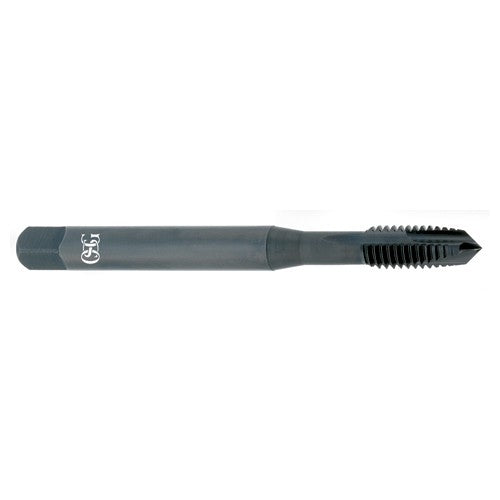

6-32 Dia.-2B-2FL - HSSE - Steam Oxide - Plug - Spiral Point Tap
Item #: TP282512401
Brand: OSG USA, Inc.
Model #: 2512401
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Cutting Edge Material | HSSCo |
| Thread Size | #6 - 32 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #6 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Thread Tolerance Class (TCTR) | 2B |
| Thread Cutting Part Length (THL) | 11/16″ |
| Usable Length (LU) | 0.783″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 56 mm |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Wire Gauge |
| Coating | Black Oxide |
| Series/List # | 250 |
| Flute Count (NOF) | 2 |
