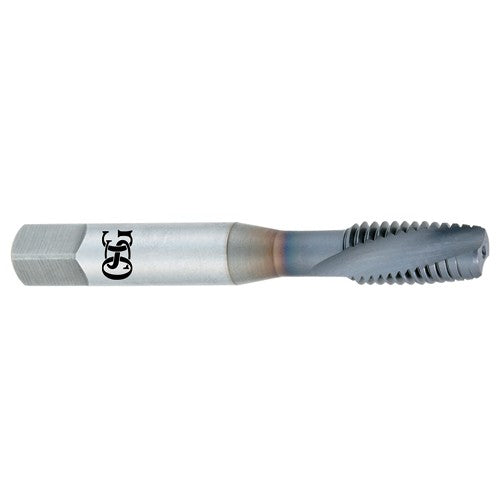

1/4-20 Dia.-2B-2FL - HSSE - TiCN - Plug - Spiral Flute Tap
Item #: TP281305900508
Brand: OSG USA, Inc.
Model #: 1305900508
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Cutting Edge Material | HSSCo |
| Threads per Inch (TPI) | 20 |
| Thread Tolerance Class (TCTR) | 2B |
| Thread Standard | NC |
| Tool Type | Hand Tap |
| Overall Length (OAL) | 2-1/2″ |
| Chamfer | 4P-4.5P |
| Thread Cutting Part Length (THL) | 1″ |
| Coating | TiCN |
| Usable Length (LU) | 0.996″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Style | Plug |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
