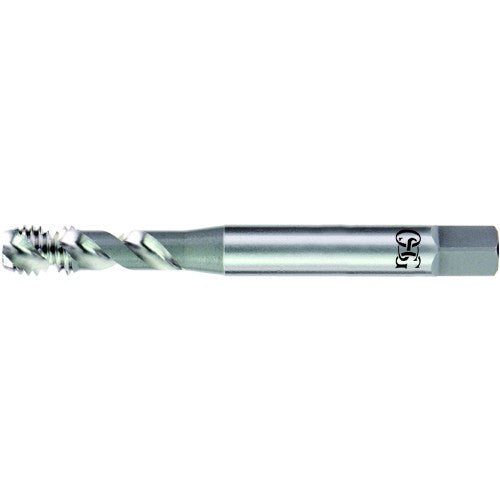

8-32 H3 3FL MOD-BOTT AL DIN NIT
Item #: TP281301900403
Brand: OSG USA, Inc.
Model #: 1301900403
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #8 |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 32 |
| Standard | DIN |
| Thread Standard | NC |
| Tool Type | High Performance Tap |
| Overall Length (OAL) | 63 mm |
| Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 3/4″ |
| Coating | Nitride |
| Usable Length (LU) | 0.826″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.167″ |
| Style | Modified Bottoming |
| Flute Count (NOF) | 3 |
| Measurement Type | Wire Gage |
| Cutting Edge Material | HSSCo |
