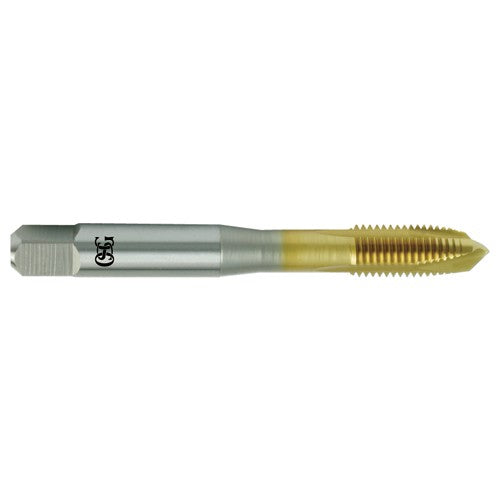

M8 1.25 Dia. - H7-3 FL - HSSE - TiN - Plug - Spiral Point Tap
Item #: TP281111503605
Brand: OSG USA, Inc.
Model #: 1111503605
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | HSSCo |
| Thread Size | M8 × 1.25 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M8 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 1.25 mm |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm |
| Thread Tolerance Class (TCTR) | H7 |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Usable Length (LU) | 32 mm |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-23/32″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Metric |
| Coating | TiN |
| Series/List # | 11115 |
| Flute Count (NOF) | 3 |
