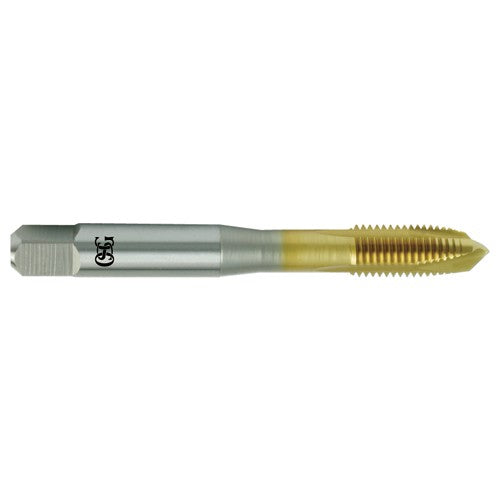

M3 0.5 Dia. - H4-3 FL - HSSE - TiN - Plug - Spiral Point Tap
Item #: TP281111500905
Brand: OSG USA, Inc.
Model #: 1111500905
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | HSSCo |
| Thread Size | M3 × 0.5 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M3 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Thread Tolerance Class (TCTR) | H4 |
| Thread Cutting Part Length (THL) | 5/8″ |
| Usable Length (LU) | 19 mm |
| End Shape | Spiral Point |
| Overall Length (OAL) | 1-15/16″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Metric |
| Coating | TiN |
| Series/List # | 11115 |
| Flute Count (NOF) | 3 |
