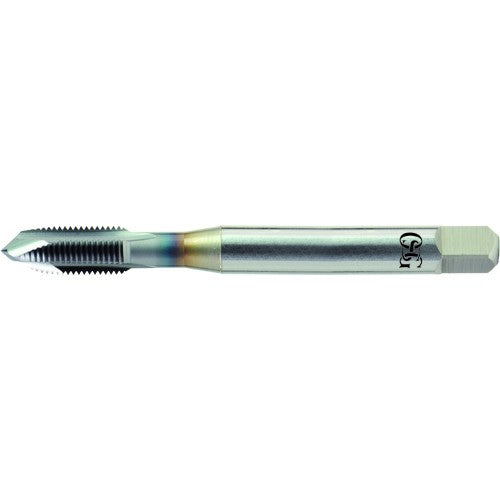

1/4-20 H3 3FL PLUG DIN TICN SP PT
Item #: TP281101700608
Brand: OSG USA, Inc.
Model #: 1101700608
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Cutting Edge Material | HSSCo |
| Thread Size | 1/4″ - 20 |
| Standard | DIN |
| Thread Diameter Size (TDZ) | 1/4″ |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 20 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Tolerance Class (TCTR) | H3 |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Usable Length (LU) | 1.185″ |
| Thread Cutting Part Length (THL) | 1″ |
| Overall Length (OAL) | 80 mm |
| End Shape | Spiral Point |
| Chamfer | 3.5P-4.5P |
| Style | Plug |
| Coating | TiCN |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | 11017 |
