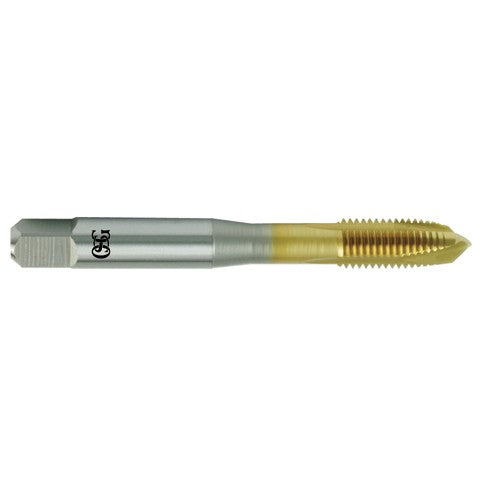

5/16-18 Dia. - H6-3 FL - HSSE - TiN - Plug - Spiral Point Tap
Item #: TP281101511205
Brand: OSG USA, Inc.
Model #: 1101511205
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Cutting Edge Material | HSSCo |
| Thread Size | 5/16″ - 18 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | 5/16″ |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 18 |
| Connection Diameter Machine Side (DCONMS) | 0.317″ |
| Thread Tolerance Class (TCTR) | H6 |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Usable Length (LU) | 1.283″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-23/32″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Inch |
| Coating | TiN |
| Series/List # | 11015 |
| Flute Count (NOF) | 3 |
