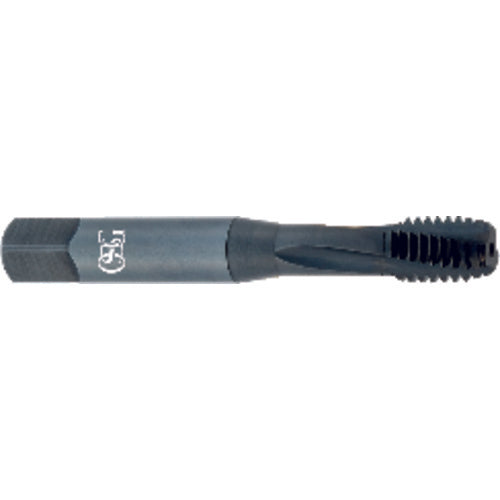

5/16-24 H3 3RX SEMI-BOT EXO VC-10 TI
Item #: TP251752908
Brand: OSG USA, Inc.
Model #: 1752908
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Cutting Edge Material | VC-10 |
| Threads per Inch (TPI) | 24 |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Standard | UNF |
| Tool Type | Spiral Flute Tap |
| Overall Length (OAL) | 2.72″ |
| Chamfer | 2.5P-3P |
| Usable Length (LU) | 1.126″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Measurement Type | Inch |
