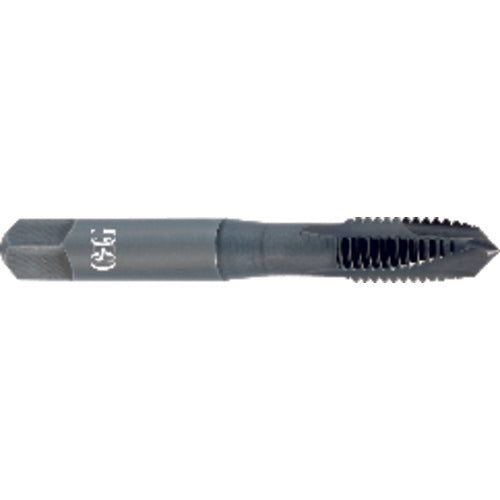

3/8-24 3FL H4 HSSE Spiral Point Tap - Steam Oxide
Item #: TP251737001
Brand: OSG USA, Inc.
Model #: 1737001
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Flute Count (NOF) | 3 |
| Thread Size | 3/8″ - 24 |
| Cutting Edge Material | HSSCo |
| Thread Diameter Size (TDZ) | 3/8″ |
| Tool Type | Spiral Point Tap |
| Threads per Inch (TPI) | 24 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Tolerance Class (TCTR) | H4 |
| Connection Diameter Machine Side (DCONMS) | 0.38″ |
| Usable Length (LU) | 1.259″ |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| Overall Length (OAL) | 2-15/16″ |
| End Shape | Spiral Point |
| Chamfer | 4P-4.5P |
| Measurement Type | Inch |
| Coating | Black Oxide |
| Series/List # | 300 |
