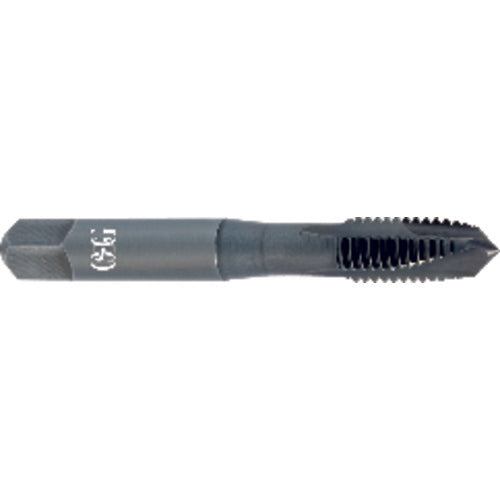

4-48 H4 2FL VA3 S/O EXOTAP SPIRAL
Item #: TP241727001
Brand: OSG USA, Inc.
Model #: 1727001
| Product Specifications | |
|---|---|
| Thread Standard | UNF |
| Coating | Black Oxide |
| Thread Size | #4 - 48 |
| Flute Count (NOF) | 2 |
| Thread Diameter Size (TDZ) | #4 |
| Cutting Edge Material | VC10 |
| Threads per Inch (TPI) | 48 |
| Tool Type | Spiral Point Tap |
| Thread Tolerance Class (TCTR) | H4 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 0.559″ |
| Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Overall Length (OAL) | 1.87″ |
| Measurement Type | Wire Gauge |
| Chamfer | 3.5P-4.5P |
