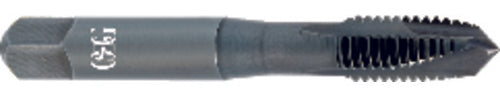

M5X0.8 STI D3 3S/P PLUG
Item #: TP2334200501
Brand: OSG USA, Inc.
Model #: 34200501
| Product Specifications | |
|---|---|
| Tool Type | STI Tap | Hand Tap |
| Applicable Material | Steel | Stainless Steel |
| Style | Plug |
| Chamfer | 3.5P-4.5P |
| Thread Diameter Size (TDZ) | M5 |
| Coating | Black Oxide |
| Thread Tolerance Class (TCTR) | D3 |
| Thread Pitch (TP) | 0.8 mm |
| Thread Standard | Metric |
| Usable Length (LU) | 25 mm |
| Thread Cutting Part Length (THL) | 15 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 6.47 mm |
| Cutting Edge Material | HSSE |
| Series/List # | 342STI |
| End Shape | Spiral Point |
| Thread Size | M5 × 0.8 |
| Flute Count (NOF) | 3 |
