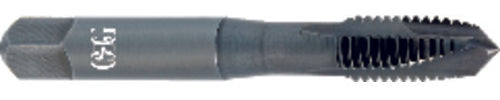

M4 0.7 Dia. - STI - D3-3 FL - Spiral Point Plug EXO VA3 S/O Tap
Item #: TP2334200401
Brand: OSG USA, Inc.
Model #: 34200401
| Product Specifications | |
|---|---|
| Tool Type | STI Tap | Hand Tap |
| Applicable Material | Steel | Stainless Steel |
| Style | Plug |
| Chamfer | 3.5P-4.5P |
| Thread Diameter Size (TDZ) | M4 |
| Coating | Black Oxide |
| Thread Tolerance Class (TCTR) | D3 |
| Thread Pitch (TP) | 0.7 mm |
| Thread Standard | Metric |
| Usable Length (LU) | 22 mm |
| Thread Cutting Part Length (THL) | 12 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 4.92 mm |
| Cutting Edge Material | HSSE |
| Series/List # | 342STI |
| End Shape | Spiral Point |
| Thread Size | M4 × 0.7 |
| Flute Count (NOF) | 3 |
