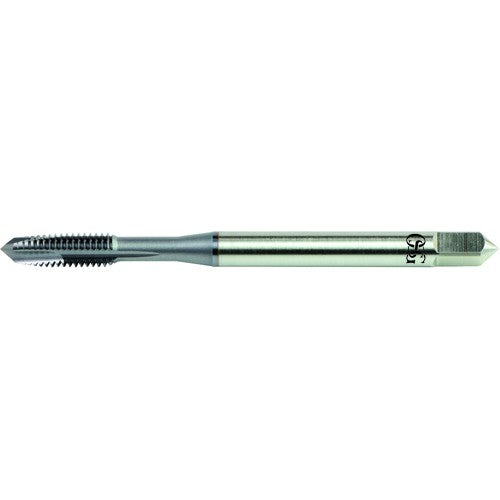

7/16-14 H5 3FL PLG AL DIN SP PT TAP
Item #: TP221101601703
Brand: OSG USA, Inc.
Model #: 1101601703
| Product Specifications | |
|---|---|
| Thread Standard | UNC |
| Cutting Edge Material | VC10 |
| Thread Size | 7/16″ - 14 |
| Standard | DIN |
| Thread Diameter Size (TDZ) | 7/16″ |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 14 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Tolerance Class (TCTR) | H5 |
| Connection Diameter Machine Side (DCONMS) | 0.322″ |
| Usable Length (LU) | 1.291″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 3.93″ |
| Style | Plug |
| Chamfer | 3.5P-4.5P |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
